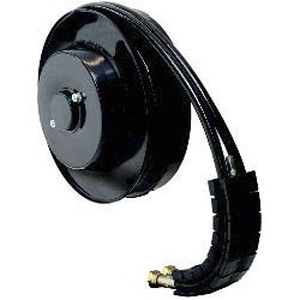

Hose reel W2R-XX/F seriesself-retractingdoublethermoplastic
Add to favorites
Compare this product
Characteristics
- Type
- hose
- Drive mechanism
- self-retracting
- Configuration
- double
- Reel material
- thermoplastic
- Hose/cable length
Max.: 30 m
(98'05" )Min.: 2.3 m
(7'06" )
Description
Two port hose reel flange serial - Product facts
-for thermoplastic welded double hose
-available in Left or Right version
-fixation by mounting flange
-self winding by permanent spring force
-Max. working pressure reel:300 bar (optional 400 bar)
-Max. flow rate: 40 l/min
-Max. hose speed: 30 m/min
-Temperature range: –20°C/+80°C (optional –40°C/+80°C)
-Hose extract standard: horizontal to the left or right; vertical upwards
(Optional downwards)
