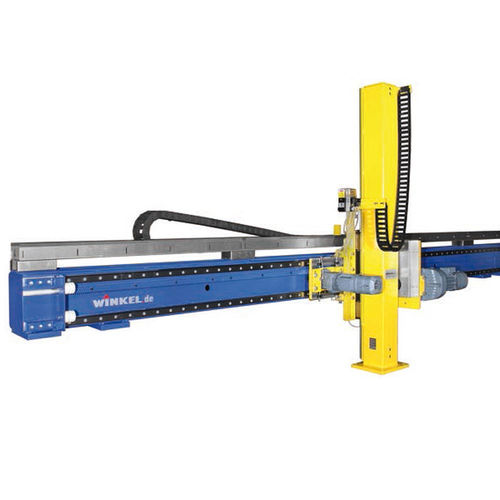

Electric linear unit DLE series

precisionvertical

WINKEL Axis Systems Serie DLE are economical designed and built systems for load capacities up to 4.000 kg. The precise and robust linear axis for high load capacity, speed and high precision applications. Comes in steel design with LM guides, hardened and grinded in combination with hardened rack and pinion drive. Drives in AC or Servo version in combination with high precision gear boxes. The „Sportcar“ under the linear axis systems for loading and unloading machine tools and production equipment, palletizing technology and automotive and aircraft industry. Product facts WINKEL DLE Linear Axis High Dynamic -high load capacity, speed and precision -LM guides, hardened and grinded in combination with hardened rack and pinion drive -modular steel structure suitable for your application -drives in AC or Servo version in combination with high precision gear boxes -suitable vertical axis and telescopic axis -suitable turning modules on request -central lubrication on request -robust design for 3 shift application -low maintenance -short delivery time -CAD downloads available for your layouts
