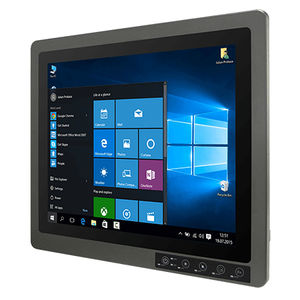

HMI panel PC W24ITWS-MHA2-EX
TFT LCDLED backlightPCAP capacitive touch screen

HMI panel PC
HMI panel PC
HMI panel PC
HMI panel PC
Add to favorites
Compare this product


Characteristics

Screen type
TFT LCD, LED backlight, PCAP capacitive touch screen, multi-touch screen
Display size
23.8"
Resolution
1920 x 1080
Processor
Intel® Core™ i5-1135G7
Operating system
Windows 10 IoT Enterprise
Construction
modular, plastic housing, metal chassis, ultra-compact, fanless, aluminum frame, slim design
Mounting
VESA mounting, wall-mounted, embedded, kiosk, chassis-mounted, rack-mounted, vehicle-mount
Applications
for the food industry, industrial, for IoT applications, POS, for data acquisition systems, POC, data acquisition, for hazardous areas, for the pharmaceutical industry, for clean rooms, for marine applications, for mobile applications
Protection level
IP65, IP67, rugged, waterproof front panel, dust-proof, corrosion-proof, ATEX, shock-proof, antibacterial, vandal-proof, MIL-STD-810, IECEx, explosion-proof, MIL-STD-461F
Other characteristics
all-in-one, HMI, fullscreen, RFID, real-time, wide temperature range, PoE, high-performance, SCADA, sunlight-readable, multimedia, with external power adapter, indoor, outdoor

Description

W24ITWS-MHA2-EX 23.8" Intel® Core™ i5-1135G7 M Series HMI Panel PC KEY FEATURES Intel® 11th Generation Tiger Lake UP3 Core™ i5 CPU Signature true flat display screen with edge-to-edge design Aluminum, anti-corrosion treated housing Superior sealing with front IP65 protection against dust and water Projected Capacitive Multi-Touch Screen (PCAP) Fanless Design Support wide range 9-29 V DC input Quick & Easy Removable 2.5” SSD Bay Slot Support PCIe x4 Card Class 1 Division 2, Group A-D, T4 Certification Fanless Cooling System We use well-defined thermal analysis procedures to verify IPC systems to meet the harsh environment applications. Especially in fanless cooling design, we develop a heat-sink or heat-pipe solution to conduct the heat and the airflow for the best thermal solution. In the fan cooling system, we will analyze the system's thermal profiles before designing it to ensure the most efficient heat convection. Certified for Hazardous Locations The W24ITWS-MHA2-EX is C1D2 certified computer for remote data collection, process visualization, and control. Full Aluminum Alloy Enclosure, Compact, Low weight design, Excellent Heat Dissipation Like the other Winmate series products with IP65 also features a low-power, fanless design for superior energy efficiency, quiet operation, and an extended product lifecycle. Superior sealing with front IP65 protection against dust and water Winmate's IP65 Series built for wet and dusty applications; it is rated to IP65 and supports water and dust resistance while keeping a compact and narrow bezel design, suitable for use in wet and dusty environments such as Oil and Gas application.
