Embedded motherboard IK70

mini-ITXIntel® Core i3Intel® Core i5

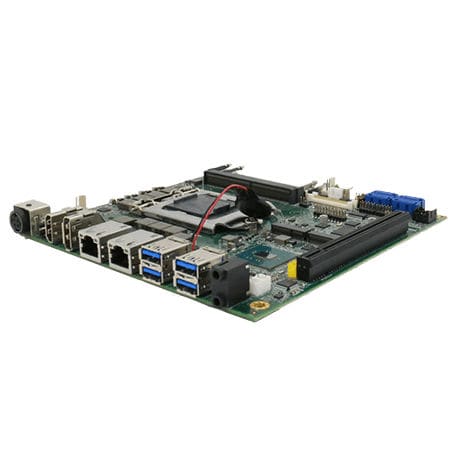

IK70 Intel® Core™ i7/i5/i3 Mini ITX Embedded Board KEY FEATURES Socket LGA1151 for Intel® Core™ i7/ i5/ i3 Processor, Mini ITX Embedded Board Mini ITX Form Factor ( 170 x 170 mm ) DDR4 2400MHz SO-DIMM support up to 64GB 12V Single Voltage Power Input Multi display supports DP / HDMI (Optional) / LVDS / eDP panel interface Optional PCIE 3.0 x 16 slot High-Performance CPU Designed for Embedded Systems Winmate Mini-ITX SBC offered with Intel® Processors to provide high performance and low power consumption. Ready for Challenging Environments Winmate Mini-ITX SBCs are built to be easy to install, access, and maintain. The mini-iTX SBCs have a wide array of I/O support, all of which are located on the PC's front or top sides.
