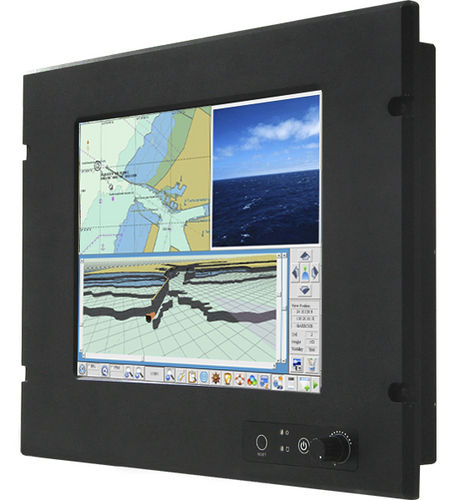

Panel PC with touch screen R10ID3S-MRM2
10.4"800 x 480Intel® Atom N2600

Panel PC with touch screen - R10ID3S-MRM2 - Winmate, Inc. - 10.4" / 800 x 480 / Intel® Atom N2600
Panel PC with touch screen - R10ID3S-MRM2 - Winmate, Inc. - 10.4" / 800 x 480 / Intel® Atom N2600
Add to favorites
Compare this product


Characteristics

Screen type
with touch screen
Display size
10.4"
Resolution
800 x 480
Processor
Intel® Atom N2600
Applications
for marine applications, industrial
Protection level
IP65, IP54

Description

A 10.4" Marine Panel PC powered by the Intel Dual Core Atom N2600 Platform with a Fan-less design. A SODIMM DDR3-800 with maximum 4GB storage (Default 2GB). An Intel Graphic Accelerator 3650 with AMI 4Mbit Flash, dimming knob control for back-light luminosity ranging from 0%-100%. Reflective film technology that enhances visual appearance. A Panel (flush) mount IP65 aluminum housing with powder coating design (IP54 rear). Power capability of 9~36V DC power input. Excellent quality touchscreen / AR secured glass for option and Panel (Flush) mount with IP65 (SAW touch for IP54). SAW, 5-Wire Resistive, User-friendly front panel with OSD control. For endurance, Intensified shock and vibration resistance. Features • Intel® Dual Core Atom N2600 Platform,Fanless Design • Dimming knob control backlight brightness from nearly 0% to 100% • Transflective film technology enhance visibility • Panel (flush) mount IP66 aluminum housing with powder coating design (IP54 rear) • 9~36V DC power input acceptable • High quality touchscreen / AR protection glass for option • Ease of use front panel OSD control • Enhanced shock and vibration resistance
