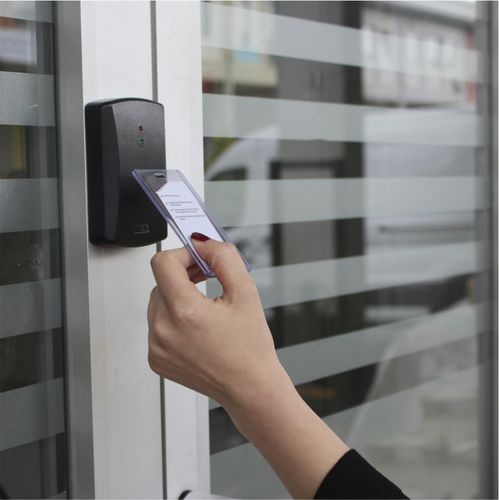

RFID card reader WR-501

13.56 MHzfor access controlRS232

WR-501 Mifare Card Reader is designed to be used in access control systems, personnel attendance tracking systems, e-wallet applications, cafeteria control systems, that is, in any application that can be done with a mifare card. WR-501 Mifare Card Reader has RS232 and RS485 infrastructure. RS232 connection is for single applications close to PC. RS485 is used in multiple applications over long distances. It is done using WR-202 converter for TCP to IP application. Thanks to TCP IP, borders are removed and the device can be accessed from anywhere with internet. WR-501 Mifare Card Reader can only work online. All necessary authorization and control processes in Online Work are performed by the control computer. In addition, WR-501 Mifare card reader computer can work independently up to 1024 users as standalone. Technical Specifications Operating Voltage: 9-30 V DC Power Consumption: 3W RFID Card Frequency: 13.56 MHz Display: No User Information: Standalone 1000 card capacity, 26000 personnel with control panel 172.032 motion records Dimensions: 115 mm x 75 mm x 23 mm Connection Type: RS232, RS485
