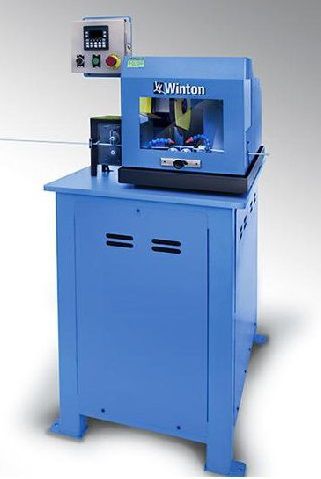

Rotary blade cutting machine CTL-25A

tubeCNCautomatic

Product Description The CTL-25A is a cnc wet abrasive machine designed to cut hard metals. Materials such as stainless and Inconel are just a few of the metals suited for this cutting process. The cutting process makes use of a thin 9” diameter abrasive wheel. The constant flood coolant helps make sure the cut is near clean with minimal burr. The cut lengths are programmable on the fly. Just enter the length, press the cycle button, and production will start. Call Winton today to see how this process will reduce your cost of goods sold. Model CTL-25A Automatic Feed & Cut - Standard Equipment: Wet abrasive cutting system includes flood coolant delivery system Microprocessor controlled Closed loop feedback system used to feed (index) material forward 3900 rpm abrasive blade used to cut material Air over oil cross feed for smooth cutting action Programmable material feed rate (1 thru 5) Programmable part cut length (inch/millimeters) Programmable number of parts to cut Programmable saw cut time Programmable compensation for changes in a cutting wheel’s diameter (wear compensation) (2) independent pneumatic grippers for material support while cross feed is cutting material Material low indicator switch used to detect end of material/bar stock Top cover guard must be in position to operate saw blade (electrical interlock) (1) abrasive saw blade included
