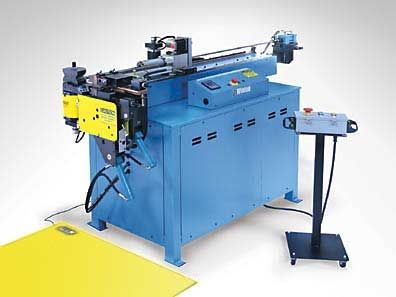

Hydraulic bending machine RD30 eCNC

tubeCNC3-axis

Product Description Winton Machine’s RD30 eCNC tube bender is a 3 axis CNC tube & pipe bender able to make mandrel bends. To get started, you program the distance between bends, the plane rotation between bends, and the bend angles. Load a tube, press a button and production begins. It’s that simple. All 3 axis of motion are closed loop feedback providing excellent repeatability. To keep the programming of new bent tubular parts to a minimum, the tube bender can be linked directly to engineering. Optional software that intergrates with your Windows PC interface enables the CNC tube bender to read in a CAD generated STEP file of a bent tube. That means you can go from a solid model to a bent tube in seconds. This helps cut down on programming time and data entry errors. Therefore, there is never a need to type into the controller the tube’s LRA or XYZ data points. The CNC tube bender’s controller can read a STEP file and extract the LRA (YBC) bend data, and the centerline radius. This saves programming time and makes your life easier. Tube bending should be easy. The Winton RD30 eCNC tube & pipe bender makes it that way. As a U.S. manufacturer we focus on providing the best tube fabrication solution for our individual customer needs. . Winton Machine builds CNC tube benders with automatic loaders, drill options, a safety clamp, as well as a variety of other options. Ask about our other optional software features as well including our 3D part viewer, data logger, and hitch feed . The video shown in the top right highlights the drilling option eliminating the need for a secondary operation.
