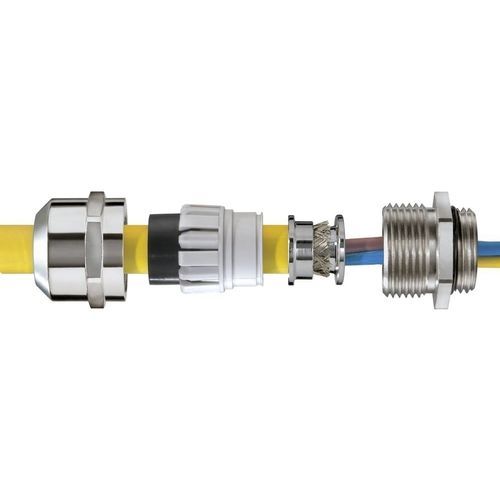

Cable gland for railway applications EMSKV LT EMV-Z RW
polyamidebrassnickel-plated brass

Cable gland for railway applications - EMSKV LT EMV-Z RW - WISKA Hoppmann GmbH - polyamide / brass / nickel-plated brass
Cable gland for railway applications - EMSKV LT EMV-Z RW - WISKA Hoppmann GmbH - polyamide / brass / nickel-plated brass
Cable gland for railway applications - EMSKV LT EMV-Z RW - WISKA Hoppmann GmbH - polyamide / brass / nickel-plated brass - image - 2
Add to favorites
Compare this product


Characteristics

Material
polyamide, nickel-plated brass, brass
Protection level
EMC-shielded, IP68, IP69
Other characteristics
strain relief, for railway applications
Cable diameter

Min.: 3 mm
(0.12 in)

Max.: 28 mm
(1.1 in)

Thread diameter

Min.: 12 mm
(0.47 in)

Max.: 40 mm
(1.57 in)

Operating temperature

Min.: -60 °C
(-76 °F)

Max.: 100 °C
(212 °F)

Description

Protection class - IP69 / IP68 (5 bar 30 min) Material - Gland Brass nickel-plated, Clamping cage Polyamide UL94-V0, Gasket Silicone, Earthing cones Brass chromium-plated
