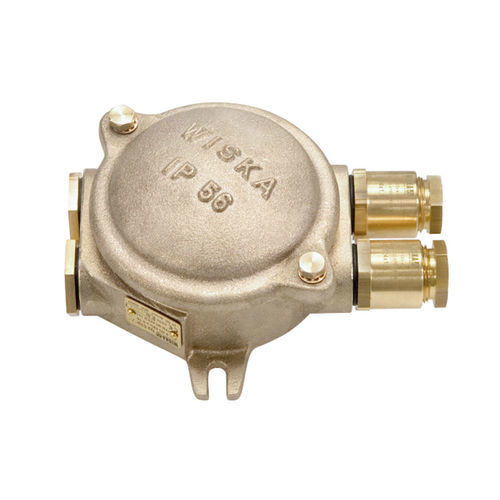

Surface mounted junction box 510 seriesexplosion-proofATEXIECEx
Add to favorites
Compare this product
Characteristics
- Mounting
- surface mounted
- Protection level
- explosion-proof, ATEX, IECEx
- Material
- brass
- Applications
- for hazardous areas
- Other characteristics
- with cable gland
- Length / diameter
134 mm
(5.3 in)- Width
109 mm
(4.29 in)- Depth
65 mm
(2.56 in)
Description
Marking - II 2 G Ex eb IIC T6...T4 Gb, II 2 D Ex tb IIIC T85°C Db
Zone - 1
Approval - IECEX TUR 16.0011X, TÜV 15 ATEX 7564 X
Protection class - IP66
Temperature range - -55 °C - 130 °C
Voltage - 690 V
Terminals/poles - 2 x 2-poles, 6mm²
Variations - on request
