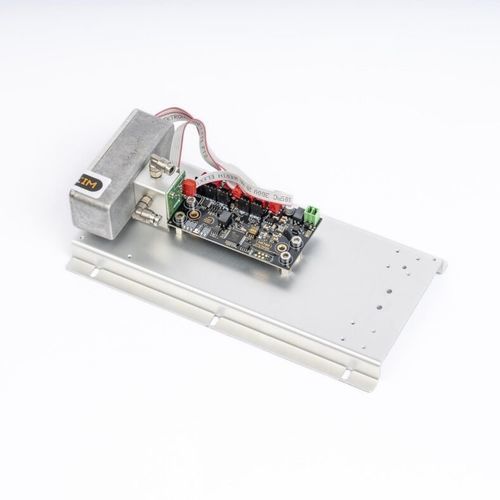

NDIR gas sensor INFRA.sens® AK5

COCH4CO2

The INFRA.sens® was specially developed for high-quality NDIR gas analysis. In the design phase, special emphasis was placed on high stability and a low detection limit. With the use of high-performance light emitting diodes (IR-LED) and thermal micro radiators, which were adapted to the needs of gas measurement technology, these goals were achieved in full. In the spectral range from 2 μm to 12 μm, carbon dioxide, carbon monoxide, hydrocarbons and nitrous oxide can be reliably detected up to the ppm range with this new sensor platform. Applications - Biogas - Industrial gas analyzer - Environmental monitoring - Process control - Instrumentation Options - O2.sens - P.sens - HUMI.sens - Analogboard - Thermobox Features & Benefits - Rugged sensor design - Low power consumption < 2 W @ 24 V - Different Interfaces (RS232, CANbus) - Low drift - MARS-Tool (Wi.Tec Software) - < 100 Vol.% General features* - Measurement principle - Non-dispersive infrared (NDIR); dual beam; dual to quad wavelenghts
