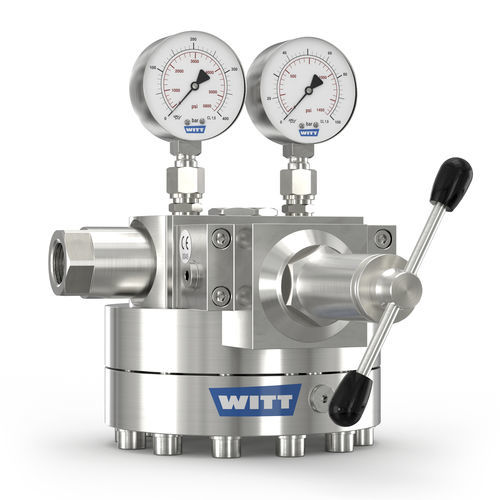

Gas pressure regulator 737LE-HD/S-ES

dome-loadedsingle-stageanalog

High-performance dome-loaded pressure regulator-set. For high and varying flows requiring maximum pressure stability. A complete solution, applicable as a manifold pressure regulator per DIN EN ISO 7291. Features Pilot Control Tube (PCT): One of the features enabling highly accurate control of outlet pressure Balanced Seat Design (BSD): Further enabling control precision, high reliability and low maintenance A complete solution, ready to use. With integrated pilot pressure regulator, and stainless steel pressure gauges, completely assembled and tested Own-medium controlled. Enabling autonomous operation Closed system. No gas is released to atmosphere Simple to install and operate. Removable spindle enables simple setting of the required outlet pressure. Can be positioned at any angle / orientation. For indoor and outdoor installation. Operation / Usage Ideal for process gas supply where pressure accuracy is required even when inlet pressures and flow rates are varying. High flow rates and outlet pressure accuracy are achieved, even when the difference between inlet and outlet pressures is small. Own-medium controlled, with integrated pilot gas regulator, meaning no separate gas supply is required. Maintenance Annual testing of body leak tightness is recommended. Depending on application, moving wetted parts may need periodic replacement. Device-specific Maintenance-Kit available upon request. Approvals Company certified according to ISO 9001, ISO 22000 and PED 2014/68/EU Module HCE-marked according to PED 2014/68/EUATEX 2014/34/EU with ignition hazard analysis according to EN 1127-1, DIN EN 13463-1 and ZH1/200
