- Hydraulics - Pneumatics
- Valve
- Compressed air pressure regulator
- WITT-Gasetechnik

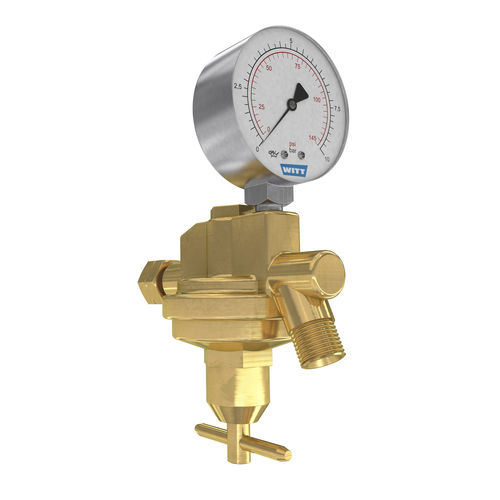

Compressed air pressure regulator for acetylenefor oxygenspring
Add to favorites
Compare this product
Characteristics
- Product
- for compressed air, for oxygen, for acetylene
- Technology
- spring
- Number of stages
- single-stage
- Material
- brass
- Applications
- industrial
- Other characteristics
- with pressure gauge
- Pressure
2.5 bar, 28 bar, 40 bar
(36.26 psi, 406.11 psi, 580.15 psi)- Orifice diameter
0.25 in, 0.38 in
Description
For direct connection to the gas outlet point
for a stable working pressure and a safe workplace
displays pressure via manometer or flow via manometer or float
inlet MG
outlet AGS
WITT pressure regulator for outlet points are available in different versions:
G 3/8 MG - G 1/4 AGS in accordance with EN 560
G 3/8 LH MG - G 3/8 LH AGS
for argon + CO2.
Pv max = 28 barg, Q= 0 - 30 l/min (manometer readings)
G 3/8 MG - G 1/4 AGS in accordance with EN 560
for argon + CO2.
Pv max = 28 barg, Q= 0 - 30 l/min (float readings)
G 3/8 MG - G 1/4 AGS in accordance with EN 560
