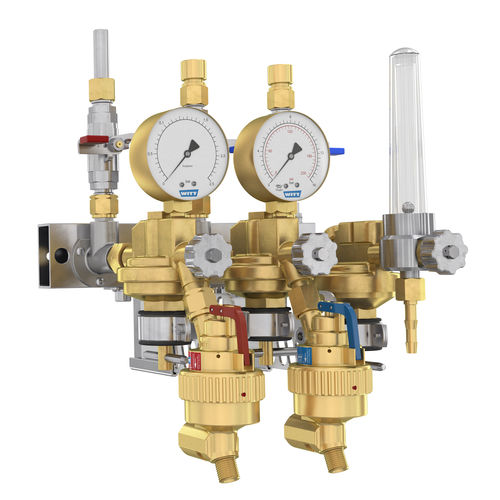

Multi-channel manifold 603 series

brassfor gasdistribution

Outlet point for connection to a central gas supply system, modularly extendable for acetylene, fuel gas, oxygen and shielding gas compact and easy to handle anti-swiveling mount of pressure regulator and flashback arrestor nickel-plated tube with nickel-plated wall screen infinetely modularly extendable the combination of gas paths and design features is customisable inlet with fittings (soldering end and/or welding socket) and outlet with nozzle or male thread (option hose coupling) ball valves in inlets signals clearly position OPEN / CLOSED respectively gas flow / gas stop quick and easy wall mounting compact design completely mounted and tested nearly unlimited number of gas paths nickel-plated tube with nickel-plated wall screen, for withdrawal of acetylene, fuel gas, oxygen and shielding gas anti-swiveling fixing of pressure regulator / safety device Options: pressure regulator with pressure gauge or flow meter model with safety devices, according to EN 730 / ISO 5175-1 against dangerous reverse gas flow and flashbacks hose coupling SK100 according to DIN EN 561 / ISO 7289 WITTFIX-Pipe Couplers Operation / Usage: Outlet points are connected to the central gas supply system by ring or stub lines and adjusted to the required local flow and specific operating pressures. Indication: 603-1 for one gas path 603-2 for two gas paths 603-3 for tree gas paths 603-X for more than tree gas paths
