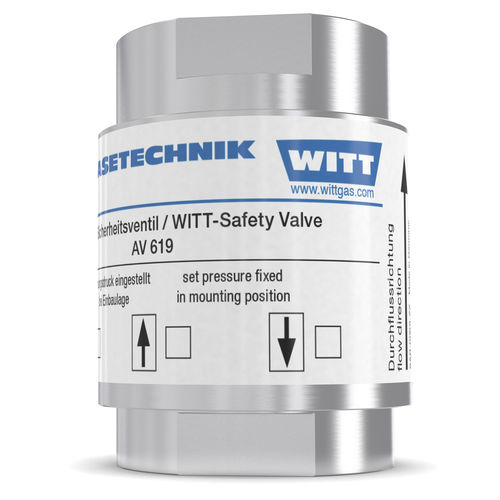

Gas safety relief valve AV 619-ES
for pipelinesfor tankstainless steel

gas safety relief valve
gas safety relief valve
gas safety relief valve
Add to favorites
Compare this product


Characteristics

Fluid
for gas
Applications
for pipelines, for tank
Body material
stainless steel
Other characteristics
compact, for oxygen
Controlled pressure

Max.: 500 mbar
(7.3 psi)

Min.: 5 mbar
(0.1 psi)

DN

0.38 in, 0.5 in, 1 in

Flow rate

Max.: 90.7 m³/h
(3,203.04 ft³/h)

Min.: 2.6 m³/h
(91.82 ft³/h)

Weight

790 g
(27.87 oz)

Description

Safety Relief Valve, stainless steel, for venting excess pressure from receivers, pipelines and other equipment, 5 up to 500 mbar spring-loaded, direct-acting safety relief valve every safety relief valve 100% tested set to exactly the opening pressure you specify TÜV-certification of openeing pressure setting also ideal for use with corrosive gases different connections for inlet and outlet 52 X 70,5-83,5 mm, 790 g Spring-loaded, direct-acting safety relief valve for venting excess pressure from receivers, pipelines and other equipment. Every safety relief valve 100% tested. Benefits: individual opening pressure TÜV-certification of pressure setting available in brass or stainless steel (ES) sealing material to suit gas or at customer's request compact size for easy, problem-free installation range of inlet and outlet connections adapter for connection to ventilation pipe free of oil and grease Approvals Company certified to ISO 9001and PED 97/23/EC Module H Cleaned for Oxygen Service according to EIGA IGC Doc 13/12/E: Oxygen Pipeline and Piping Systems

Catalogs

No catalogs are available for this product.

See all of WITT-Gasetechnik‘s catalogs
