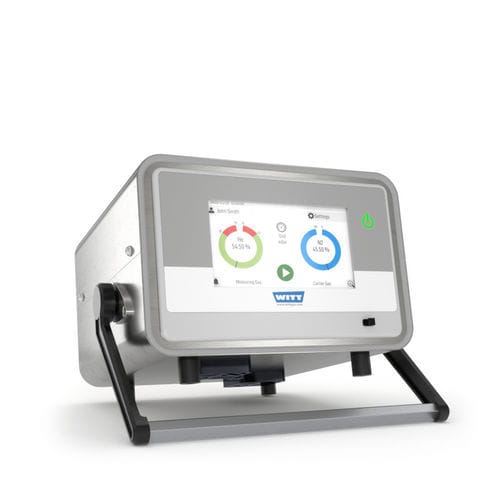

Gas analyzer MFA 10.0
monitoringprocessthermal conductivity

Gas analyzer - MFA 10.0 - WITT-Gasetechnik - monitoring / process / thermal conductivity
Gas analyzer - MFA 10.0 - WITT-Gasetechnik - monitoring / process / thermal conductivity
Gas analyzer - MFA 10.0 - WITT-Gasetechnik - monitoring / process / thermal conductivity - image - 2
Gas analyzer - MFA 10.0 - WITT-Gasetechnik - monitoring / process / thermal conductivity - image - 3
Gas analyzer - MFA 10.0 - WITT-Gasetechnik - monitoring / process / thermal conductivity - image - 4
Add to favorites
Compare this product


Characteristics

Measured entity
gas
Application domain
monitoring, process
Measured value
thermal conductivity
Configuration
benchtop, portable, compact
Mode of use
automatic
Other characteristics
continuous, digital, control, with touchscreen, with data logger, mixing

Description

Compact, portable analyser for the measurement of 15 combinations of gases based on a thermal conductivity sensor. The ideal analyser for mobile use and service. A flexible controller to guarantee quality and productivity of production processes. Benefits flexible due to 15 different 2-gas mixtures in one unit analysis of 3-component-mixtures, provided 2 gases of the mixture have a similar thermal conductivity and the third gas differs enough from this thermal conductivity mobile analysis of gas mixtures at the point of use continuous control of the gas mixtures when used with gas mixing systems alarm possible via min.- and max.- limit transmitter easy use through self-explaining functions and settings simple to operate via touch-screen easy calibration long lifetime of the sensor low maintenance, light and robust cost effective and proven in practise easy installation and start-up minimal response time quick gas mixture change permanent monitoring of set limit values operator friendly – data and process parameter entry and administration by means of integrated keyboard or remote personal computer (e.g. MS-Excel®) perfect documentation by complete user- and product data as well as error logs measured data storage administration of gas mixtures user management for measurement personalization individual configurable error codes with respective error logging remote transmission of results via Ethernet Ethernet connection for network integration data transfer via USB port hygienic and easy to clean splash-proof stainless steel cabinet / housing
