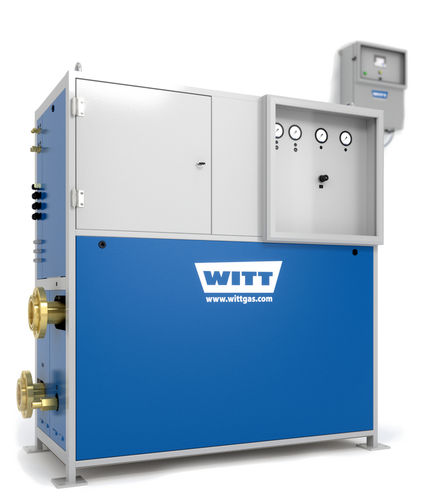

2-channel gas mixer MG2000_2ME ERC+ Ex

explosion-proof

Gas mixing systems for 2 defined gases, designed for a variety o f industrial applications with high flows and fluctuating gas mixture production requirements. For the exact pressure and flow capacity ratios, please see the technical data overleaf. Note: System only works with sufficient buffer volume (3 000 to 4 000 litres depending on gas mixing capacity). Easy operation an electro-pneumatic proportional mixing valve provides infinitely variable mixture settings - with control unit GC50 (local) - via Ethernet or analogue input (remotely adjustable) user friendly input of data and process parameter by integrated keyboard or via PC (for example MS-Excel®) simple, intuitive operation; no qualified personnel necessary customer oriented quality documentation by easy data management and evaluation gas mixture withdrawal possible from zero to the maximum flow capacity High process reliability too low inlet pressures and/or temperature triggers an audible/visual alarm and shuts down the mixed gas supply lockable transparent door for protection of settings independent of pressure fluctuations in the gas supply intermittent gas mixture withdrawal possible Options for flammable gases available as Ex-version with separate control cabinet monitoring of the gas supply by means of pressure and/or temperature transmitter; too low an inlet pressure and/or temperature triggers a visual alarm (audible optional) and switches a potential free contact (e.g. to shut down machinery to avoid quality problems) integrated gas analysis for the monitoring/control and documentation of the gas mixture production
