Gas back-pressure regulator BPR 2
dome-loadedsingle-stagebrass

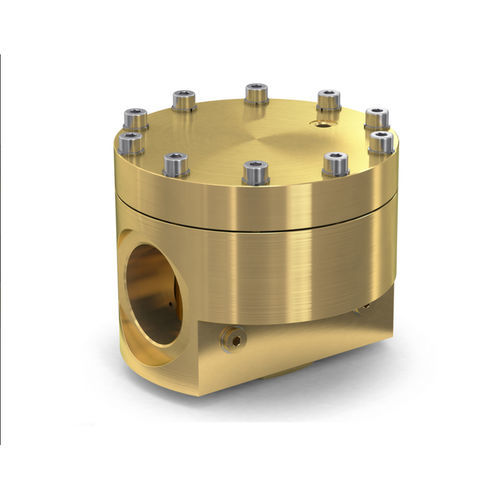

Gas back-pressure regulator - BPR 2 - WITT-Gasetechnik - dome-loaded / single-stage / brass
Gas back-pressure regulator - BPR 2 - WITT-Gasetechnik - dome-loaded / single-stage / brass
Gas back-pressure regulator - BPR 2 - WITT-Gasetechnik - dome-loaded / single-stage / brass - image - 2
Add to favorites
Compare this product


Characteristics

Product
for gas
Technology
dome-loaded
Number of stages
single-stage
Material
brass, stainless steel
Applications
precision, low-pressure
Other characteristics
proportional
Pressure

Min.: 0.5 bar
(7.25 psi)

Max.: 20 bar
(290.08 psi)

Flow

10 m³/h
(353.15 ft³/h)

Orifice diameter

0.125 in

Temperature

Min.: -30 °C
(-22 °F)

Max.: 50 °C
(122 °F)

Description

Rapid and accurate monitoring of inlet pressure provides process reliability Ideal e.g. for pressure regulation from gas cushions in tanks Available in brass or stainless steel ATEX 2014/34/EU with ignition hazard analysis according to EN 1127-1, DIN EN 13463-1 and ZH1/200 Fulfils the requirements of EU Regulations (EC) 1935/2004, and (EC) 2023/2006 Fulfils the requirements of German Food and Feed (LFGB) Law, and is suitable for contact with food gases Features of the backpressure regulator Pilot Control Tube (PCT) One of the features enabling highly accurate control of inlet pressure Balanced Seat Design (BSD) An inlet pressure balanced main valve ensures precision and high reliability Rapid and accurate monitoring of inlet pressure provides process reliability Available in brass or stainless steel (ES) Integrated connections for pilot gas and pressure gauges Inlet pressure regulation by external pilot pressure or proportional valve Simple to install and operate Removable spindle enables simple setting of the required outlet pressure Can be positioned at any angle / orientation For indoor and outdoor installation. Operation / Usage Ideal for process gas supply where constant backpressure is required. For example pressure regulation from gas cushions in tanks Maintenance Annual testing of body leak tightness is recommended depending on application.
