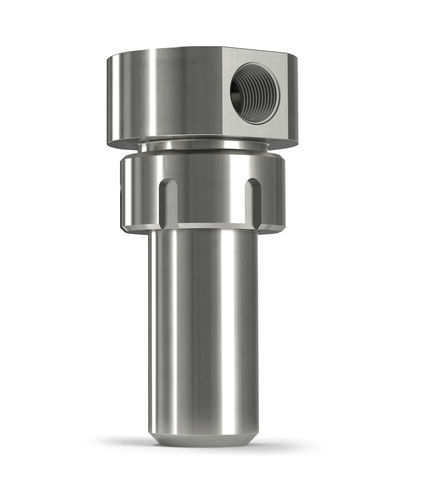

Gas filter HD

cartridgefor industrial applicationsstainless steel

HD Gas Filter Stainless Steel up to 300 bar - for filtering out impurities (30-80 μm), ideal for hydrogen increases service life of downstream fittings and equipment high flow rate - owing to flow maximising design filter inserts made of chromium-nickel steel ideal for hydrogen and many other technical gases change of filter possible while installed every gas filter 100% tested 79 X 175 mm, approx. 2,7 kg WITT gas filters for reliable protection against contamination. Benefits: filtering out of mechanical impurities through nickel chromium steel filter inserts broad range of uses – compatible with many technical gases change of filter possible while installed due to user-friendly design high flowrate thanks to flow-maximising design reliable filtering performance increases service life of downstream fittings and equipment Operation / Usage: the gas filter is designed for installation in pipelines Maintenance: the filter inserts must be checked regularly and replaced if necessary suitable for hook wrench HN 10 according to DIN 1810 Approvals Company certified to ISO 9001 CE-marked in accordance with PED 2014/68/EU Cleaned for Oxygen Service in accordance with EIGA 33/18 and CGA G-4.1: Cleaning of Equipment for Oxygen Service
