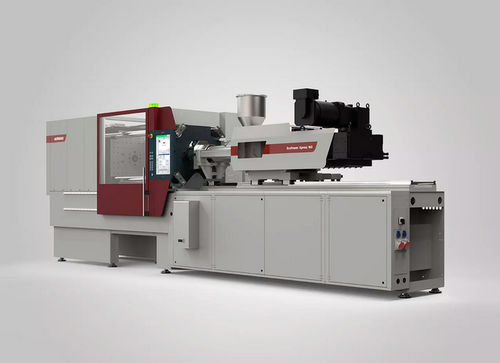

Horizontal injection molding machine EcoPower 160 – 500

hydraulicelectrictoggle

The EcoPower Xpress is an extremly fast toggle injection molding machine whose main axes are driven by water-cooled servo motors. The model height adjustment system of the clamping unit is also driven by an electric motor. A hydraulic system with servo drive is used for the secondary movements. The machine is equipped with a highly dynamic injection unit. The injection stroke as well as the screw retraction before/after plasticizing are realized with twin herringbone gear racks with symmetrical force transmission. The clamping unit of the EcoPower Xpress is a 3-platen/4-tie-bar system with a 5-point toggle lever, self-locking in the end position, with a drive system consisting of a servo motor and rack-and-pinion gears. The highly rigid moving platen travels on a moving carriage on the machine frame, supported by linear guides and rotating roller bearings, without contact to the tie-bars. Servo-electric high-performance injection molding system for thin-walled products Injection units in 3 sizes for injection speeds of up to 600 mm/s and injection pressures of up to 2,500 bar Highly dynamic injection acceleration of up to 15,000 mm/s2 High-performance plasticizing barrier screws Maintenance-free 5-point toggle lever system with encapsulated central lubrication system Fast responding mold protection system
