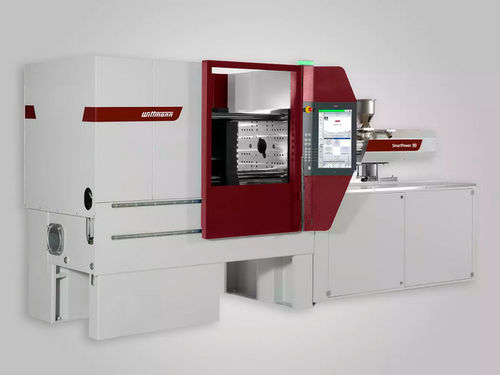

Horizontal injection molding machine SmartPower 25 – 400
servo-hydraulicmodularthree-platen

Horizontal injection molding machine - SmartPower 25 – 400 - WITTMANN - servo-hydraulic / modular / three-platen
Horizontal injection molding machine - SmartPower 25 – 400 - WITTMANN - servo-hydraulic / modular / three-platen
Horizontal injection molding machine - SmartPower 25 – 400 - WITTMANN - servo-hydraulic / modular / three-platen - image - 2
Add to favorites
Compare this product


Characteristics

Closure
horizontal
Operation
servo-hydraulic
Other characteristics
modular, three-platen
Clamping force

Max.: 400 tf

Min.: 25 tf

Description

Thanks to the modular design, the SmartPower is extremely versatile and lends itself to many special processes. The powerful control unit UNILOG B8 offers various possibilities of process control and documentation. The machines feature a very small footprint, thanks to their highly compact, extremely rigid 3-platen design. They are highly energy-efficient due to a new space-saving and low-noise servomotor. A generously dimensioned mold mounting area and low-maintenance linear guides are further highlights of the SmartPower. Smallest footprint Traversable injection units with linear movements. The screw can be removed quickly in just a few easy steps. Rapid and even build-up of clamping force through a simple, centralized hydraulic clamping system with diagonally symmetrical fast-stroke cylinders and centrally mounted ejector Support for the moving platen by high-precision linear guides Easy, comfortable parts removal in three directions through open drop area.
