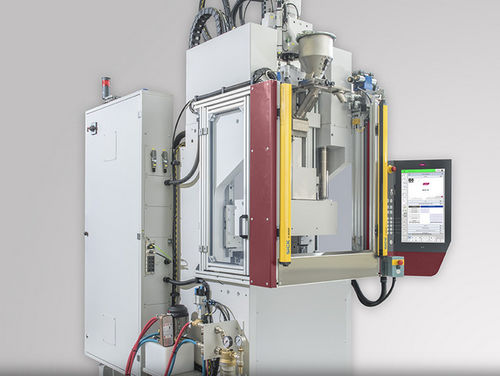

Vertical injection molding machine CM series

hydraulicmodulartie-bar-less

The complete automation in one production cell with enough space for the insertion of parts The CM, CM S and CM R machines are characterized by their compact, tie bar free design for space saving production. To optimize energy efficiency, the CM series machines can be equipped with a "Drive-on-Demand" servo motor. The CM has a tie bar-less vertical clamping unit. There are no disturbing outlines in the mold area. The vertical C frame design with two symmetrical clamping cylinders guarantees a maximum of mold space with optimal accessibility. The CM is used above all for insert molding of any kind of connectors and cables. Optimal access for manual parts removal and further automation concepts through the protection of the insertion and removal areas by light barriers. Maximum mold space with optimal accessibility through Vertical clamping unit in C frame design with 2 symmetrical clamping cylinders. Ergonomic working conditions in semi-automatic operation through reduced working height of just 1,000 mm.
