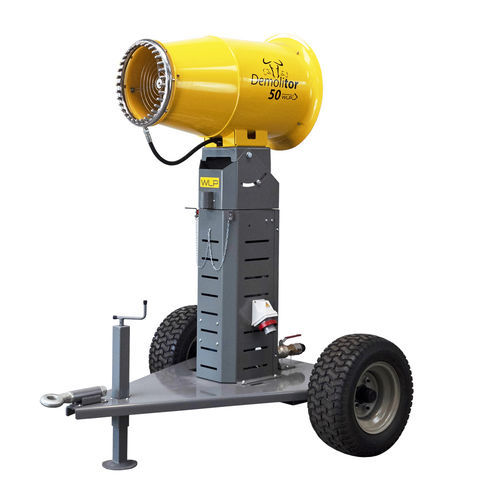

Dust control fog cannon Demolitor 50

mobile

Theoretical throw distance (without wind): 30-40 m Rings of nozzles: N. 1 Number of nozzles: N. 33 Type nozzles: stainless steel Nominal fan power: ~ 5,5 kW Manual Angle of rotation: 340° Manual Pitch angle adjustable from: -20° ÷ +45° Hydraulic connection: 1 ½ gas M Electrical connection: 400 V 50 Hz 3P+T 32 A Protection rating: IP 55 Noise level: < 93 Lwa Water filter with extractable cartridge Water consumption (with 15 gph nozzles): BAR - 6 - 9 - 12 - 15 LITRES/MINUTES - 20 - 24 - 28 - 31 Dimensions (mm): H: 2100 - L: 1715 - W: 1470 Weight (Kg)): Total weight dry approx. 240 Kg Water pump: 2,2 kW Pressure: Minimum 0,5 bar - maximum 35 bar Optional: Ergonomic radio command – Main electrovalve, Electro-mechanic system for rotation
