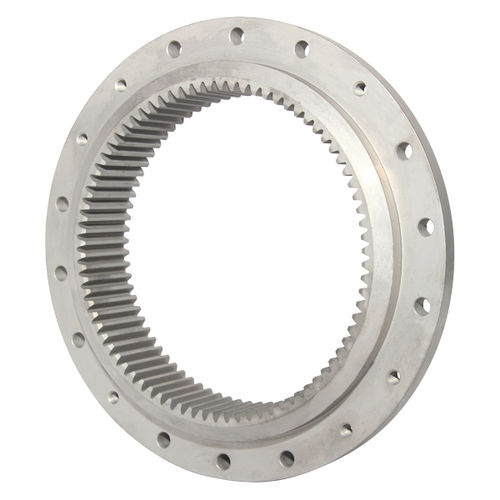

Spur gear

straight-toothedgroundcustom

Spur Gears - Custom Made Parts: Acc. to drawing and customer requirement, we manufacture spur gears, pinion shafts and gear rims in numerous designs: Spur Gears & Gear Rims - Straight or helical teeth - External and internal gear - Parts in ground quality: toothing-Ø up to 2 000 mm; toothing in any modules and special pitches - Parts in milled quality: toothing-Ø up to 5 000 mm; toothing up to module 24 - Materials, hardening or surface coating according to customer requirements Gear Rim Segments In addition to the manufacturing possibilities of gear rims (mentioned above), segments with larger pitch circle diameters are available on request. Hirth Serration - Milled and hardened design - 45° or 60° profile angle - Backlash-free, self-centering serration at the end face of cylindrical shafts for a rigid and centrical connection of shafts, discs and gears - Highest indexing and repeat accuracy Herringbone Gears Gears with herringbone gearing are available on request; outer-Ø up to 1 400 mm.
