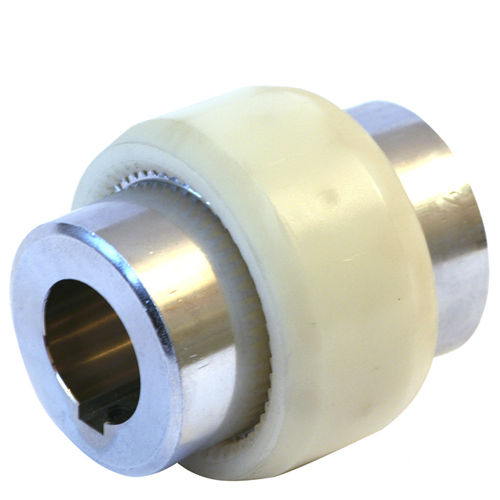

Jaw coupling chaincurved-tooth gearcustom-made
Add to favorites
Compare this product
Characteristics
- Type
- jaw, chain, curved-tooth gear
- Other characteristics
- custom-made
- Torque
Min.: 15 Nm
(11.0634 ft.lb)Max.: 4,800 Nm
(3,540.2983 ft.lb)- Rotational speed
Min.: 3,300 rpm
(20,734.51 rad.min-1)Max.: 22,200 rpm
(139,486.71 rad.min-1)
Description
Torque LimitersTorque Limiter Chain CouplingsChain CouplingsCurved-Tooth Gear CouplingsJaw Type CouplingsCustomizing of our standard products acc. to drawing andcustomer requirements:- Finished bore acc. to ISO fit H7- Keyway according to DIN 6885/1- Thread for set screw and fixing hole Chain CouplingsIn addition to our standard range, chain couplings are also availablein other sizes and in stainless steel - please inquire.Jaw Type CouplingsOur standard range offers couplings for maximum speed of3.300 - 22.200 min-1 and max. torque of 15 - 4.800 Nm.For applications requiring higher torques, gear rimswith hardness of 95-98 Shore A are available.
