Planetary gear reducer MPRN, MPRW series

coaxial200 - 500 Nm100 - 200 Nm

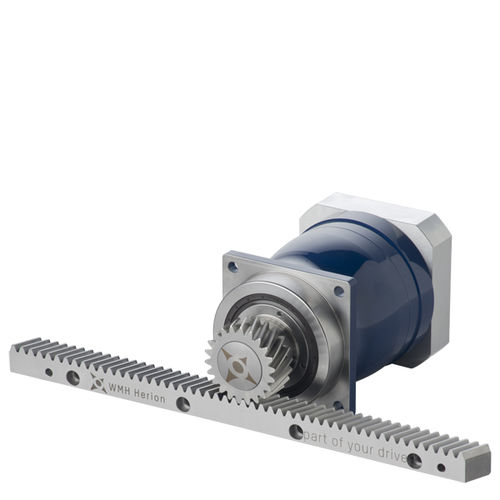

Rack & Pinion Drive The combination of low-backlash planetary gearboxes with high-precision pinions and racks is extremely energy-efficient, precise, dynamic and convincing thanks to the long service life. Rack & Pinion Drives of WMH Herion and VOGEL enable even machine gantries weighing tonnes to be accelerated dynamically and positioned accurately down to the μm range. Summary of system standards: 1. High Precision Gearboxes with a splined shaft connection on the output shaft MPRW with reduced backlash and rack in 5h23 quality, pinion in 5e24 quality. - Gearbox sizes: 050, 100, 200, 300, 04, 05 - Output torque: up to 850 Nm - Module of rack and pinion: 2 - 4 2. Precision Gearboxes with a keyway connection on the output shaft MPRN with standard clearance and rack in 6h23 (from 2000 mm 6h24) quality, pinion in 7e25 quality. - Gearbox sizes: 050, 100, 200, 300 - Output torque: up to 315 Nm - Module of rack and pinion: 2 - 3 3. Rack dimensions - In Q5, the rack can be delivered as 1 m or 0.5 m as standard. - In Q6, the rack can be delivered as 2 m, 1 m or 0.5 m as standard.
