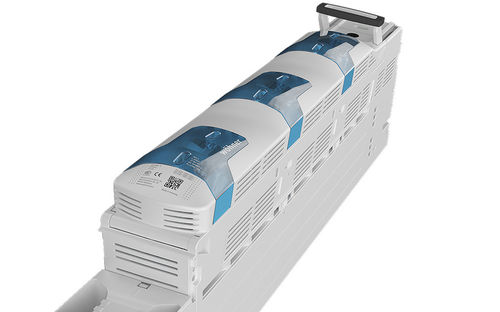

Fuse switch disconnector QUADRON®185Power Speed

with NH fusemodularindustrial

QUADRON®185Power Speed NH in-line switch-disconnector-fuse The QUADRON®185Power Speed, NH in-line switch-disconnector-fuses, in sizes 00 to 3 with an operator-independent snap switching mechanism, complement the 185Power system. With the switch-disconnector-fuse, the user also benefits from the numerous advan- tages - Quick and easy mounting, convenient line terminal and integrated transformer. Operator-independent switching Regardless of who is moving the lever – the automatic snap switching mechanism of the QUADRON®185Power Speed, NH in-line switch-disconnector-fuse switches with a defined speed. Danger from arcing is therefore effectively excluded. The snap switching mechanism always disconnects both NH fuse unit contacts from the voltage carrying components. This double break ensures even more safety. Switching even through the control panel door Due to the greater installation depth, the QUADRON®185Power Speed can also be operated when the control cabinet door is closed. Mixed Possibilities Mixed installation of switch-disconnector-fuses, switch disconnectors, and circuit breakers, with other components in the same control panel is now possible. With the modular 185Power system, the various components can be combined on a single 185 mm busbar system, everything fits perfectly together. Locking and sealing The QUADRON®185Power Speed, NH in-line switch-disconnector-fuse can be secured in a number of ways. All strips can be locked with padlocks of up to a maximum of 7 mm (NH 00) or 8 mm (NH 1-3) shackle diameter. Unauthorized activation of a strip can effectively be prevented. Seal application provides additional security against.
