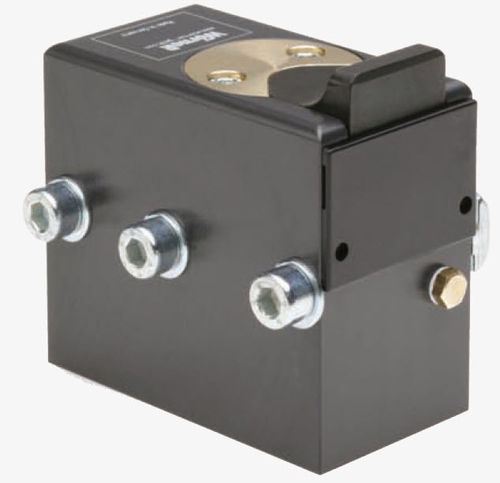

Stop unit for conveyor D0-800

This product is suitable for stopping one or more accumulated pallet holders at stop areas, defined in advance. Customers can use a separating stop in automatic assembly and handling systems, which can be activated pneumatically. The economical and sturdy design stops come without damping, and can be used at conveyor speeds of 6 to 36m per minute. The separating stops use a proximity switch stop uses an electronic sensor, detecting the upper and lower position of the stopping plate.The separating stops can be mounted, while the transfer system is usable without an adapter plate. The design comprises an aluminum housing with a hard-anodizing stop, with the pallet holder loading up to 800kg. The separating stop goes into the lock position using a spring, when depressurized.
