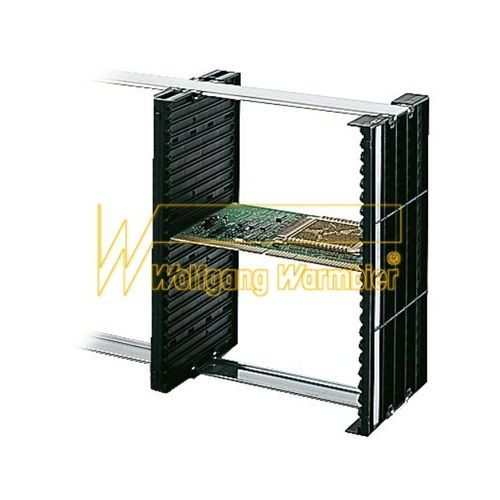

Handling rack

PCB

The versatile conductive PCB racks are made of volume conductive polypropylene and are an ideal aid in the production, storage and transportation of PCB's. The stable and non-flexing construction of the racks allows manual and automatic handling Stackable if the same size is used Numbered slots with slot stop Slot width 2,5 mm Pitch 15,3 mm Colour: black Recyclable Layout 1 consists of 2 side walls, 2 aluminium rails and screws - 5345.EL.V1 - Max. length of PCB: 135 mm, number of slots: 15 - 5345.EL.V2 - Max. length of PCB: 335 mm, number of slots: 15 - 5345.EL.V3 - Max. length of PCB: 235 mm, number of slots: 22 - 5345.EL.V4 - Max. length of PCB: 535 mm, number of slots: 22 Typical resistance to groundable point Rgp = 10^3 - 10^5 Ohm
