Bag filter housing WTBF-GDS

for liquidsstainless steel

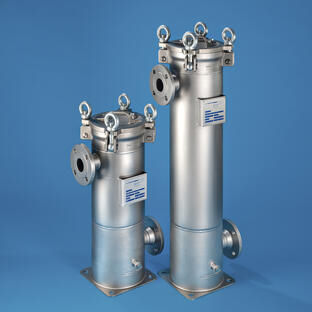

WTBF- GDS stainless steel bag filter housings with casted socket and hinged cover convince through their compact, space-saving design. And another advantage ist thatbecause of the special design of the socket-bottom together with the horizontal outlet the hosings can be drained completely. WTBF-GDS bag filter housings are manufactured in two assembly sizes. The assembly sizes reange from 0.25 m² filter surface area for the size WTBF40-GDS and to 0.5 m² for the size WTBF85-GDS. WTBF-GDS bag filter housings are supplied with a basket made of stainless steel mesh and with a spring-supported press-on device for the retention and sealing of the filter bags. An important feature of the WTBF-GDS bag filter housings is the fact, that the position, type and size of the inlet and outlet connections are variable and are only manufactured at time of and accor-ding to customer specification. WTBF-GDS bag filter housings also can be offered with stainless steel strainer baskets or with our patented LUPUS-system. Options for all sizes are a volume reducer for the reduction of the inside volume and a magnet insert for preseparation of ferrite particles.
