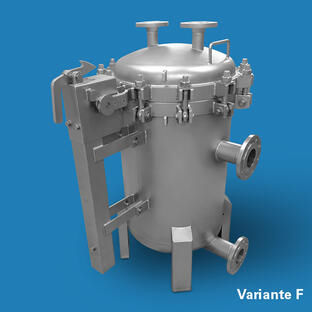

Multi-bag filter housing MWTBF

for liquidsstainless steel

Multi Bag Filter Housing with hinged cover and encased spring assembly, alternatively with lift-swivel device, are for 3/4/6/8/10 filter bags and in the two sizes available for size 1 or size 2 filter bags. The spring assembly variant with spring pack is is adjusted that way that the hinged cover can be opened and closed easily. For filter exchange or maintenance and inspection the cover can be fixed additionally in its stop position. With the lift-swivel device, the hinged cover is cranked upwards by means of a handwheel and then swiveled to the side. Inside the housing is the mounting plate with the support baskets and locking devices for 3/4/6/8/10 filter bags of size 1 or 2, depending on the variant selected. The bagadaption of the Multiple Bag Filter Housing is constructed that way, that WFB-Filter bags as well as non-company filter bags with higher collar rings can be installed. Mesh lined strainer baskets, LUPUS®II-elements or magnet inserts are additional installation options for Multiple Bag Filter Housing. The connections for inlet and outlet can be delivered in different nominal sizes and terminations and the location of the nozzles can be adjusted according to the onsite needs. Accessories like drain valves, vents, volume reducers and Pressure gauges can be supplied.
