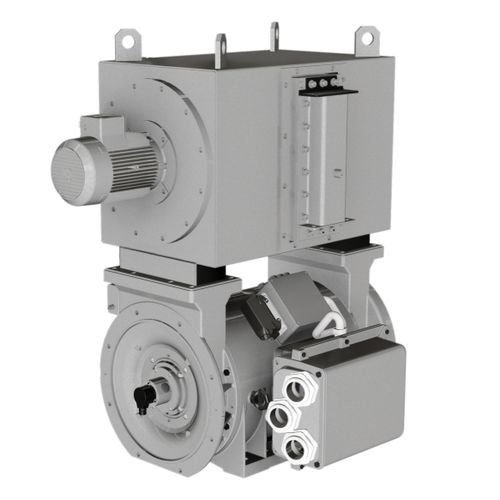

Asynchronous motor LN, DQ series400 V690 VIP23
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous
- Voltage
- 400 V, 690 V
- Protection class
- IP23
- Number of poles
- 4-pole, 2-pole
- Other characteristics
- high-speed, inverter operated
- Power
Min.: 37 kW
(50.306 hp)Max.: 1,300 kW
(1,767.508 hp)- Torque
Min.: 115 Nm
(84.8196 ft.lb)Max.: 4,580 Nm
(3,378.0346 ft.lb)- Rotational speed
Min.: 1,476 rpm
(9,273.98 rad.min-1)Max.: 15,000 rpm
(94,247.78 rad.min-1)
Description
Frame size - 180 - 400
Mounting arrangements - B3, other
Efficiency class - special
Speed range - up to 15.000 min-1
Frame construction - Fabricated steel
Degree of protection - IP23
Temperature class 155 (F) according to 130 (B) or 180 (H) according to 155 (F)
Cooling method - IC01, IC06
Certificates - CE
High-speed asynchronous machines are marked by smaller size, low weight, smooth running, optimized mass moment of inertia and ease of maintenance.
