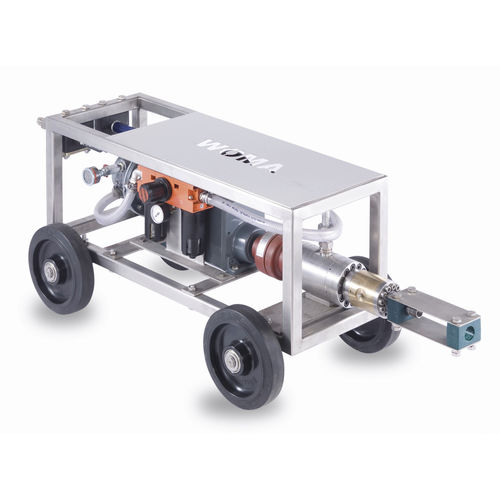

Water feeding unit TubeMaster

for cleaners

Water feeding unit - TubeMaster This is especially suitable for tubes with non-linear geometries and diameters up to 500 mm. The reason for this is a rotating high-pressure hose connected to a whirl jet nozzle. TubeMaster continuously slides the hose into the tube to be cleaned. The torque protection prevents the high-pressure hose also being rotated in the depressurised state. Unique here: TubeMaster enables the withdrawal of the hose, even when the system is running. Technical data - Operating pressure (bar)max. 1400 - Max. flow volume (l/min)180 - Inlet temperature (°C)max. 60 - Rotational speed (rpm)16 - 144 - Air consumption (m³/h)65 - Air pressure (bar)6 - Weight (kg)124 - Dimensions (L × W × H) (mm)120 x 80 x 60
