Water-jet cutting machine ECO TOP CUTTER
for metalsheet metalmechanical

Water-jet cutting machine - ECO TOP CUTTER - WOMA GmbH - for metal / sheet metal / mechanical
Water-jet cutting machine - ECO TOP CUTTER - WOMA GmbH - for metal / sheet metal / mechanical
Water-jet cutting machine - ECO TOP CUTTER - WOMA GmbH - for metal / sheet metal / mechanical - image - 2
Add to favorites
Compare this product


Characteristics

Technology
water-jet
Material
for metal
Product handled
sheet metal
Other characteristics
linear, mechanical
Operating pressure

3,000 bar
(43,511.32 psi)

Weight

38 kg
(83.78 lb)

Description

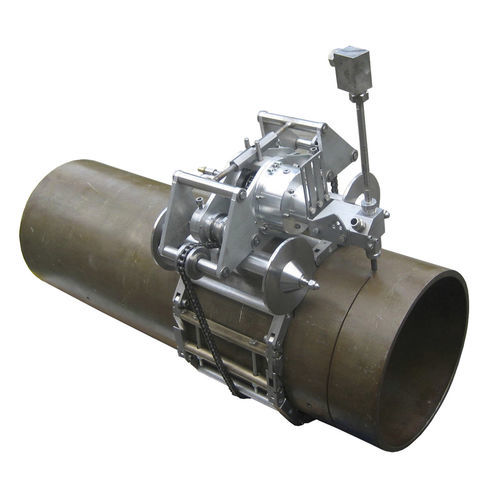

With the Eco Top Cutter, a wide variety of materials with different thicknesses can be cut. The system is available for round or linear cuts, as needed. The cutter carriage is driven by an air motor. The high-pressure water reaches the cutting head via the nozzle pipe. The addition of abrasive substance takes place according to the injector principle, i.e. it is sucked into the cutting head. As water jet cutting produces no thermal or mechanical stresses at the cut or break-off edges, thermally sensitive materials such as plastics can be cut off without any problem. The travel speed is to be selected as slow or fast depending on the type (concrete, steel etc.) and thickness of the material. Eco Top Cutter is also available on request as an EX-i version for use in potentially explosive atmospheres. High Pressure Plunger PumpType 190M
