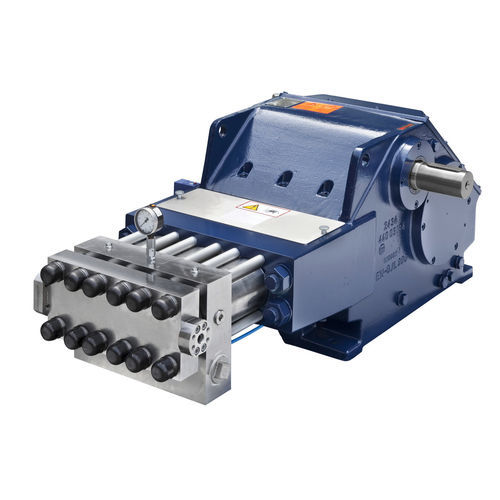

Water pump Type 330M
oilairplunger

water pump
water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water, oil, air
Technology
plunger
Mobility
mobile
Domain
industrial
Applications
high-pressure, cooling, service
Protection level
ATEX, robust
Other characteristics
double, built-in, seal
Flow

56 l/min
(14.79363 us gal/min)

Pressure

Max.: 3,000 bar
(43,511.321 psi)

Min.: 2,000 bar
(29,007.548 psi)

Power

207 kW
(281.44 hp)

Fluid temperature

Max.: 30 °C
(86 °F)

Min.: 5 °C
(41 °F)

Length

1,365 mm
(54 in)

Width

854 mm
(33.62 in)

Height

550 mm
(21.65 in)

Weight

883 kg
(1,946.68 lb)

Description

The M-series pumps are ideally suited for tasks such as cutting, dismantling, decoating and derusting. With the built-in central valve design, these plunger pumps also have high volumetric efficiencies at high pressures. The carbide plungers used are extremely robust, provide long service life at very high pressures of up to 3000 bar, and can therefore guarantee low maintenance costs. They are also insensitive to sudden changes in temperature. The plunger guide ensures a long service life for the seal system. The sealing water system used prevents leakage, enables a higher durability for the high-pressure seals and counteracts the ingress of air. A special feature of the M-series is a second shaft end which allows another pump to be connected and can double the performance if required. All gearboxes of WOMA pumps have an integral oil cooling system. Additionally, all WOMA pumps are certified according to Atex (ExII2GDT5).
