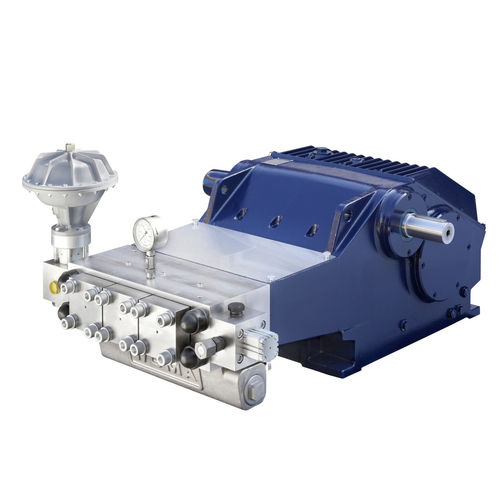

Water pump Type 550Z

paintoilair

With operating pressure up to 1500 bar and flow rates of up to 605 l/min, these Z-series plunger pumps are the ideal manual tool for industrial cleaning tasks such as paint stripping and descaling. The plunger guide ensures a long service life for the seal system. The sealing water system used prevents leakage, enables an especially high durability of the high pressure seals and counteracts the ingress of air. With the built-in central valve design, these plunger pumps also have high volumetric efficiencies at high pressures. Carbide plungers are used in pumps with an operation pressure over 1000 bar, which are particularly robust and give a long life resulting in low maintenance costs. A special feature of the Z-series is a second shaft end which allows another pump to be connected and can double the performance if required. All gearboxes of WOMA pumps have an integral oil cooling system. Additionally, all WOMA pumps are certified according to Atex (ExII2GDT5).
