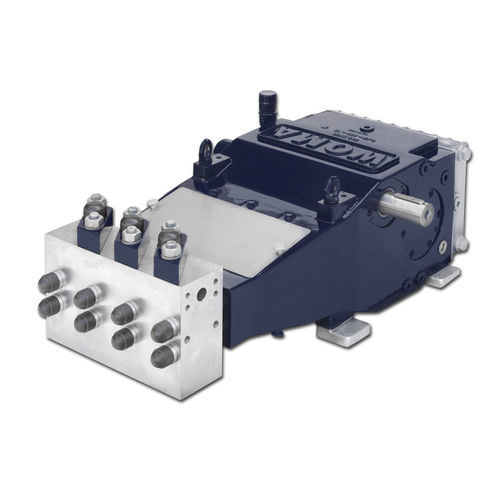

Acid pump Type 1002

oilplungermobile

The ultra high pressure pumps of the 02-series with operating pressures up to 750 bar and flow rates up to approx. 230 l/min, are ideal for the cleaning of pipes and tube bundles, vessels and containers. The seal system of this plunger pump is very easy to maintain due to fewer wearing parts. The ceramic plungers used are highly resistant to acid and alkaline liquids. An alternative available is the pump with coated steel plungers, which enhances wearing resistance and resistance to temperature shocks. The 2-series impresses with a good price/performance ratio due to long service lives – even in rough everyday work. A special feature of the 02-series is a second shaft end which allows another pump to be connected and can double the performance if required. All gearboxes of WOMA pumps have an integral oil cooling system. Additionally, all WOMA pumps are certified according to Atex (ExII2GDT5).
