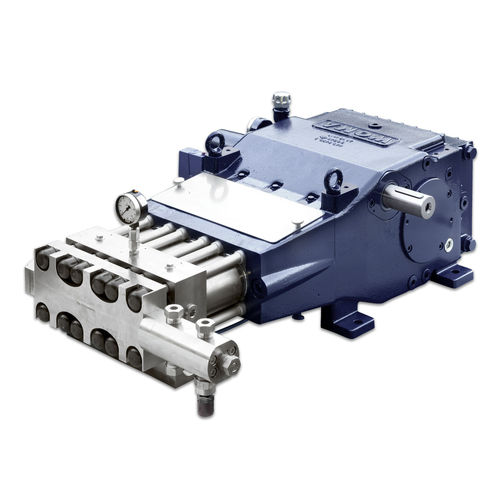

Plunger pump Type 70M
wateroilair

Plunger pump - Type 70M - WOMA GmbH - water / oil / air
Plunger pump - Type 70M - WOMA GmbH - water / oil / air
Plunger pump - Type 70M - WOMA GmbH - water / oil / air - image - 2
Add to favorites
Compare this product


Characteristics

Technology
plunger
Fluid
water, oil, air
Mobility
mobile
Domain
industrial
Applications
high-pressure, cooling, service, for industrial applications, descaling, ultra high-pressure, for water-jet cutting machines
Protection level
ATEX, robust
Other characteristics
double, flow, built-in, seal
Flow

9.8 l/min
(2.58889 us gal/min)

Pressure

Min.: 2,500 bar
(36,259.434 psi)

Max.: 3,000 bar
(43,511.321 psi)

Power

30 kW, 33 kW, 41 kW, 45 kW
(40.79 hp, 44.87 hp, 55.74 hp, 61.18 hp)

Fluid temperature

Min.: 5 °C
(41 °F)

Max.: 30 °C
(86 °F)

Length

736 mm
(29 in)

Width

529 mm
(20.83 in)

Height

241 mm
(9.49 in)

Weight

117 kg
(257.94 lb)

Description

M series - High-pressure plunger pump With the built-in central valve design, the plunger pumps of M Series also have high volumetric efficiencies at high pressures. The carbide plungers used are extremely robust, provide long service life at very high pressures of up to 3,000 bar, and can therefore guarantee low maintenance costs. This makes the pumps of this WOMA series ideal for separating, disassembling, stripping and derusting with high pressure water.
