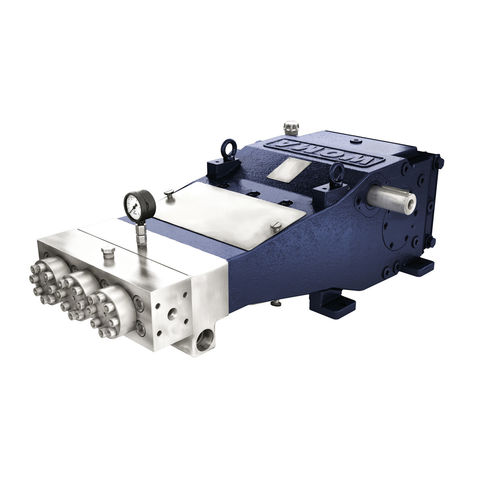

Plunger pump Type 150Zwaterpaintoil
Add to favorites
Compare this product
Characteristics
- Technology
- plunger
- Fluid
- water, paint, oil, air
- Operation
- manual
- Mobility
- mobile
- Domain
- industrial
- Applications
- high-pressure, cooling, service, cleaning, for industrial applications, descaling, for water-jet cutting
- Material
- hard metal
- Protection level
- ATEX, robust
- Other characteristics
- double, flow, built-in, seal
- Flow
136 l/min
(35.9274 us gal/min)- Pressure
1,500 bar
(21,755.661 psi)- Power
104 kW
(141.4 hp)- Fluid temperature
Min.: 5 °C
(41 °F)Max.: 45 °C
(113 °F)- Length
1,057 mm
(42 in)- Width
572 mm
(22.52 in)- Height
322 mm
(12.68 in)- Weight
316 kg
(696.66 lb)
Description

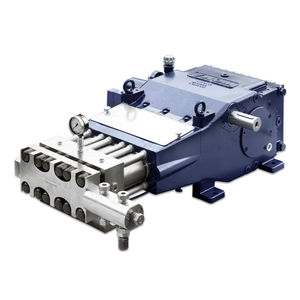

Z series - High-pressure plunger pump
The high-pressure plunger pumps of the Z series deliver operating pressures up to 1,500 bar. With a high number of pressure and nominal flow rate combinations, the pumps are preferably used in industrial cleaning, paint stripping and also in descaling.For pumps with an operating pressure of more than 1,000 bar, hard metal plungers are used, which are particularly stable in order to guarantee a long service life and thus low maintenance costs.
