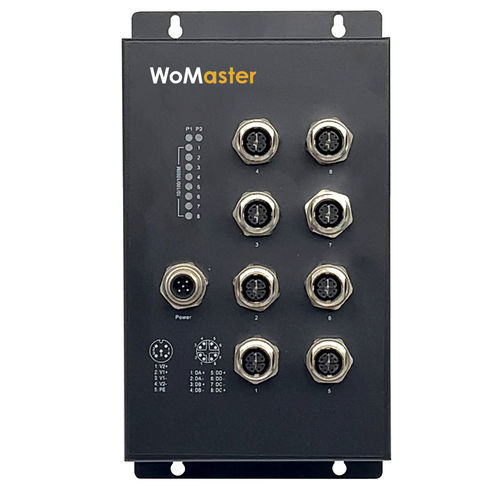

Ethernet switch with M12 connector MS208unmanaged8 portsgigabit Ethernet
Add to favorites
Compare this product
Characteristics
- Type
- unmanaged
- Number of ports
- 8 ports
- Network
- gigabit Ethernet
- Mounting
- wall-mount, in-vehicle
- Other characteristics
- rugged, IP30, with M12 connector
- Applications
- industrial, for railway applications, for railway vehicles
Description
MS208 is the M12 Ethernet with 8-port Full Gigabit Ethernet for economical solution to railway or bus vehicles . The M12 connectors ensure robust connection under shock and vibration environments. The MS208 is designed with IP30 protection metal enclosure and can operate under wide temperature from -40 to 70°C.
Features
- Provide 8 10/100/1000TX M12 Copper ports
- High back-plane bandwidth 20Gbps
- IEEE802.3x Flow control
- Surge protection for power port and data ports
- Wide power input:12~57VDC
- Wide working temperature: -40~75℃
- IP30 Protection
- High Reliability 200,000 hours MTBF
