Communication gateway SCB270MB-NB-DC

securityindustrialNB-IoT

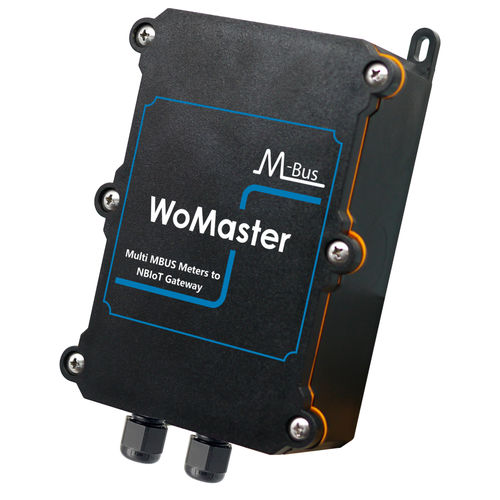

SCB270MB is a smart M-Bus Meter Cellular Gateway with NB-IoT network. The IP68 UL94V2 plastic Anti-UV enclosure and the M12 Cable Gland connectors can protect from dust, moisture, and rain from the outdoor environment. The Duo embedded MQTTS, COAP protocols enables HES auto discovery and meter reading integration for Smart Meter System. The ThingsMaster OTA safeguards the device from the remote-control center to detect and fix abnormalities at local sites. Frequency Bands: B1/B2/B3/B4/B5/B8/B12 /B13/B18/B19/B20/B25/B28/B66/B71/B85 NB2 supports max. 158.5kbps UpLink & 127kbps DownLink NB2 is backward compatible with NB1 Frequency Bands: B1/B2/B3/B4/B5/B8/B12 /B13/B18/B19/B20/B25/B28/B66/B71/B85 NB2 supports max. 1119kbps UpLink & 588kbps DownLink EGPRS: 850/900/1800/1900MHz Meter Bus Connection •EN 1434-3 Compliance •Supports Bus Short Protection, Self Recovery •300 ~ 9600bps Communication Baud Rate Outdoor IP68 Weatherproof Enclosure Effective heat dissipation design for operating in -40~70oC environments ・Various configuration paths, including CGI WebGUI, CLI, SNMP ・NAPT for local traffic protection ・Support SNMPv3 and entity-MIB (RFC4133), MIB II (RFC1213) ・NTP v3 time management ・WoMaster Software Utilities -NetMaster: Network Management System with auto-topology -ViewMaster: Configuration Management -ThingMaster: Interactive monitoring dashboard by Modbus Tag to collect data from Modbus devices Enhanced Cyber Security & Redundancy ・Support Firewall for inbound/outbound traffic ・HTTPs/SSH secure login ・Support TACACS+ multi-user authentication for privileged user management
