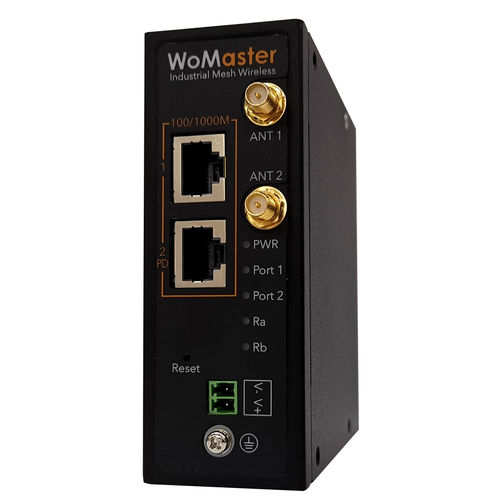

Wireless communication router WA512GM-D

WiFiWLANgigabit Ethernet

The WA512GM-D is the first industrial router in the world to adopt the latest MESH WiFi technology for the growing demands of the industrial WiFi network. The MESH WiFi features Self Organizing Network that automatically selects and links different wireless networking devices together by the mesh topology. The WA512GM-D significantly improves network coverage in different corners in a large warehouse with AGV or automated factory with advanced security. Equipped with a high-performance quad-core ARM processor, it can serve dual channels 5GHz IEEE 802.11ac Wave 2 and 2.4G 802.11n WLAN radio at the same time and reaches up to 866M+300Mbps high throughput. Advanced cybersecurity features such as OpenVPN, IPSec, L2TP and GRE tunnel are supported with high throughput. The industrial designs such as slim din-rail mounting, extended -40~70C operation temperature, and PoE power input integrate easily into IoT applications. •Self-Healing auto rerouting through multi-hop (up to 4 layers and 7 hops for optimum performance) •Self-Configuring Plug-and-play via Wireless network with ViewMaster utility •Easy MESH setup and Group MESH setup •MESH Network Status Monitoring •Autonomous performance optimization (802.11k) •Interference management via band steering (802.11v) •Seamless roaming •Self-defending (Round-the-clock security)* Enhanced Cyber Security & Redundancy ・IPSec Performance >150Mbps @256-bit encryption ・Support L2TP with PPP, PAP, CHAP(LCP, IPCP) ・Support GRE* tunnel ・HTTPs/SSH secure login Management Features •Support First login password management
