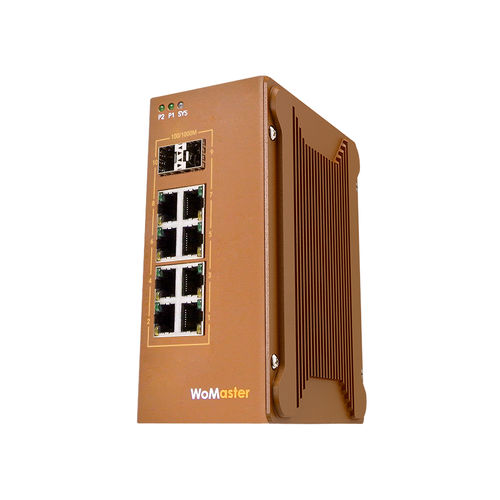

Managed ethernet switch DS610

8 portslayer 3gigabit

The 10 Port Gigabit L3 Managed Switch DS610 supports various routing protocols such as IP/VLAN routing, RIP, OSPF, VRRP router redundancy to be fully compatible with your backbone network. It is designed with advanced cybersecurity features such as Port-Based Security- IEEE802.1 x MAB (MAC Authentication Bypass), Access Control List (ACL, MAC/IP/ARP filter), DHCP Snooping, IP Source Guard, Dynamic ARP Inspection as well as advanced redundancy features such as WoMaster ERPSv2 Plus and eRSTP. ・ Powerful 1.2GHz ARM Cortex-A9 processor ・Non-blocking switch fabric design ・8 flexible Class of Service(CoS) queues ・16K MAC address table ・ 9Kb Jumbo Frame ・Fiber ports support both 100M and 1000M SFP ・DDM function for fiber connectivity monitoring ・Energy-Efficient Ethernet for power saving WoMaster ERPSv2 PLUS Ring Technology ・ITU G.8032 v1/v2 ERPS Ring Redundancy & HW-based CFM for quick acknowledgment while GbE copper link failure, providing sub 50ms recovery time and seamless restoration. ・ ERPSv2 available to replace legacy Ring + Chain + Dual Homing ・Inter-Operability with 3rd party industrial switch and still remain fast recovery time. ・Support Enhanced RSTP for large ring network topology with up to 80 switches. Layer 3 Dynamic Routing with Redundancy Protection ・RIPv1&v2, OSPFv2 for intra-domain routing within an autonomous system ・Efficient unicast/multicast static routing ・VRRPv2 guarantees sustainable routing in a single point of failure - IEC62443-4-2 Level 3 / 4 Cyber Security ・802.1X/RADIUS port-based access control ・IP Security/Port Security ・HTTPs/SSH Management IP secure access
