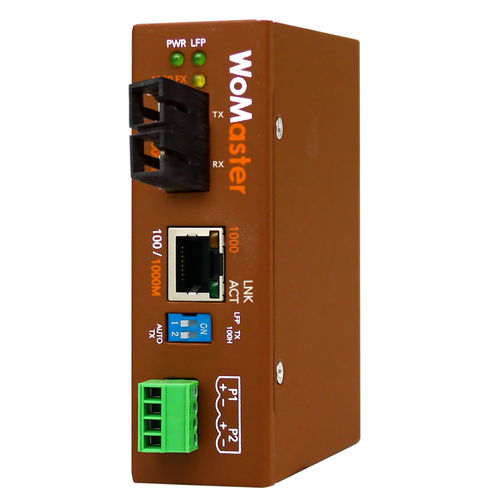

Communications converter DS201F

mediasignalEthernet media

The industrial-grade fiber optic media converter DS201-S/-M (DS201F) can operate in either low latency converter mode or store & forward switching mode. It detects and changes to store-and-forward mode if the link speed or duplex of RJ-45 and fiber ports are different. In converter mode, the Link Fault Pass-Through (Link Loss Forwarding) reaches low latency with bi-directional alert and auto-recovery. The 16Kbytes jumbo frame forwarding capability guarantees high-speed Giga communications. Wide operation temperature -40~75C and heavy industrial EMC design brings DS201-S/-M suitable for any industrial application. Ethernet Media Converter •Converts Optical Signal and Gigabit Ethernet Electrical Signal •Bi-Directional Link Loss Forwarding for Real Time Far-End Fault Link Alert Dual Forwarding Modes Pure Converter: Minimum Forwarding Latency – 8.2x10-9 Sec. Ethernet Switching Store-and-Forward: TX 100/1000Mbps Auto-Negotiation, Auto MDI/MDI-X IEEE 802.3x Flow-Control & Back-Pressure CRC Error Packet Filtering Large Packet Forwarding 16Kbytes Jumbo frame for Gigabit speed forwarding IEC 61000-6-2/ IEC 61000-6-4 Heavy Industrial EMC EN 50121-4 Railway Track Side EMC High-Level Electro Magnetic Susceptibility – Level 3* By request Easy DIP switch Configuration Link Fault Pass-Through / Link Loss Forward Hardened System Design Operates Under -40 ~75°C Environment Wide Range Redundant Power Input, 10~60Vdc or AC18~30V Ingress Protection – IP31 Compact Size Design Minimal Install Space Requirement Easy Cable Reorganization
