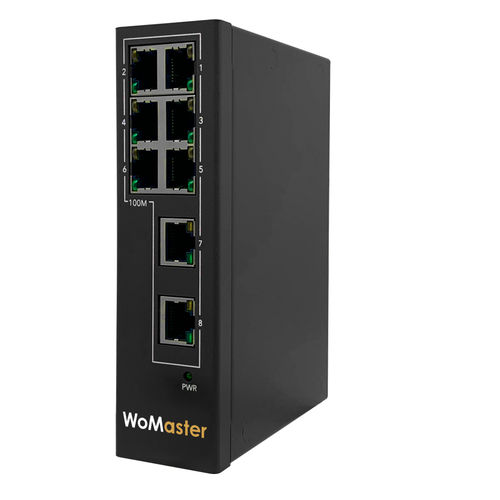

Unmanaged ethernet switch DS108A

8 portsfast ethernetDIN rail

DS108 is an industrial unmanaged Ethernet switch that provides 8-port Fast Ethernet for an economical solution to the industrial Ethernet connection. The IP40 rugged design can stand for harsh environments and wide temperatures (from -40 to 75°C) use. The compact size can fit in for space limited cabinets. The power input can support 9.6~60VDC wide power input range. Broadcast Storm Protection ・Auto drop incoming broadcast packets for network availability protection ・Fast enable/disable through DIP Switch for customer requirement QoS Service for Time-Sensitive Applications ・VIP port for Port 1/2 ・Port base design for IEEE 802.1p, DiffServ, TCP/UDP port number ・Fast enable/disable through DIP Switch for customer requirement IEEE 802.3az EEE Power Management ・Energy Efficient Ethernet ・Idle power saving mode for energy efficiency Rugged Mechanical Design ・Wide operating temperature range -40 ~ 75°C ・Wide power input range 9.6~60VDC ・CE marking ・IEC61000-6-2/IEC61000-6-4 heavy industrial EMC
