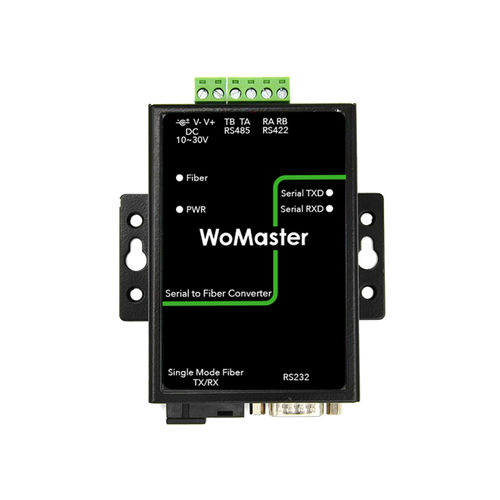

RS-485 to fiber optic converter SC201 series

DIN railhigh-speedsingle-mode

The SC201 is a converter that facilitates the connection of a remote terminal unit (RTU) with a HOST or SCADA controller by converting RS-232/485/422 signals to 100M Single Mode Fiber. It has flexible port options, allowing the user to mix and match RS-232, RS-485, or RS-422 ports, and supports 2 wires (half-duplex) RS-485 and 4 wires (full-duplex) RS-422 mode. The transmission rates for RS-232 can reach up to 115.2Kbps, and for RS-485/422 can reach up to 460Kbps, making it a high-speed converter. The SC201 supports mixed and matched ports with different electronic standards and apply single core/ single mode fiber with WDM technology to reduce the fiber transmission cost. ・Supports point to point connection ・Auto Adaptive Serial parameters without configuration ・Serial Baud Rate up to 115200bps ・Seamless Zero delay
