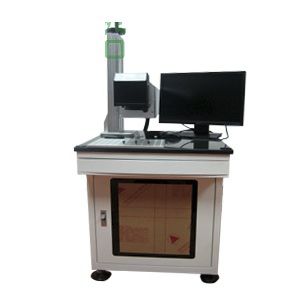

CO2 laser marking machine plasticpaperwood
Add to favorites
Compare this product
Characteristics
- Technique
- CO2 laser
- Material
- plastic, paper, wood, glass, metal, rubber, ceramic, stone
- Applications
- for PCB
- X travel
Max.: 250 mm
(9.84 in)Min.: 70 mm
(2.76 in)- Y travel
Max.: 250 mm
(9.84 in)Min.: 70 mm
(2.76 in)
Description
Can be used for the most non-metallic materials such as leather cloth, leather, wood products, paper packaging, plastic, glass ceramics, resin plastic, PCB, rubber, glass, ceramic tile, marble, jade, crystal, etc
Feature:
Standard marking area: 70*70mm~250*250mm
Laser wavelength: 10.6um
Laser type: CO2
Laser power: 10WATT/30WATT/60WATT/100WATT
Repetition rate: 50KHz
Marking depth: 0.05-1mm
Power consumption: ≤0.6KW
Power repuirement: 220V/Single/50Hz/10A
Marking line-speed: ≤ 7000mm/s
Min line width: 0.1mm
Min character size: 1.0mm
Repeat accuracy: ± 0.01mm
Cooling style: Air cooling
Lift time: 20,000 hours
