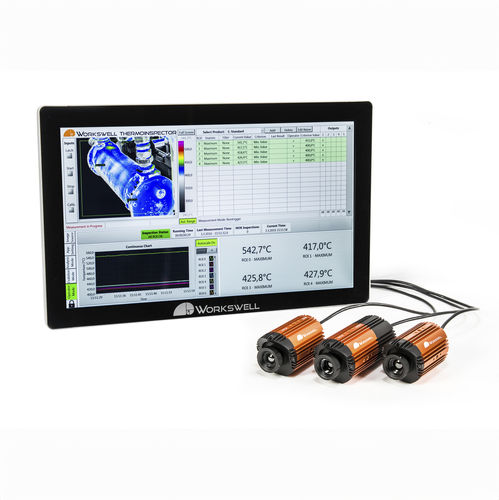

Camera inspection system ThermoInspector

thermalfor quality controlmeasurement

The Workswell ThermoInspector parameterized NDT inspection system for inspecting production quality. The ThermoInspector system is well-established in numerous areas of industry: plastic, glass, steel, foundry, wood, paper and chemicals etc. SYSTEM COMPOSITION The main part of the Workswell ThermoInspector system consists of a central unit and up to to four thermal cameras that can be simultaneously connected to the system. The delivery of the system includes Workswell WIC thermal cameras with a high thermal sensitivity (up to 30 mK), a high temperature range (up to 1500 °C) and a strong sealed enclosure (up to IP65). The central unit of the system is a universal industrial PC with included peripherals, 8 x digital inputs / outputs, 4x Ethernet interface with an integrated PoE supply and a IP64 rated case (dust tight). The system is cooled completely passively without the need for ventilators or fans. The central unit is available in two versions: as an independent industrial PC with dimensions of 26 x 22 x 8 cm, or as an all-in-one PC with a high-quality touch full HD screen and a IP65 enclosure rated as “dust tight” and “slightly water resistant”. SYSTEM FUNCTIONS The Workswell ThermoInspector is a programmable system made for to inspect quality production, process control and NDT. A major benefit of this system is the wide-range options for the configuration including the appearance and evaluation of all functions. The system also allows to create programme modules for specific machine vision algorithms or videometry, that is required for some applications.
