Butt welding machine POLYFORCE40 TRACK

manualCNChydraulic

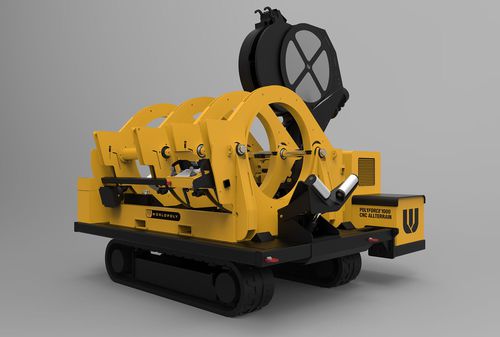

Worldpoly PolyForce40 Track. High and low pressure butt welding machine including on-board hydraulic pump, intuitive CNC or manual controls, hydraulically movable facing tool and heating plate, hydraulic open/close/locking of pipe clamps, aluminium stub device and 4 circles of two-piece clamps 40 to 20″. Tracked base includes low-noise Perkins diesel generator, three speed rubber tracks, remote control, external hydraulic pipe lifters etc. Specifications General Options Hydraulics Electrical General Australian Made 5 year warranty on parts Welding range of 18″ to 36″ (40″), alt. 12″ to 36″ (40″) SDR 9 (PN20) to SDR 41 (PN4) CNC welding according to ISO 21307-2011 Single Low Pressure, ISO 21307-2011 Dual Low Pressure, ISO 21307-2011 Single High Pressure, POP003 Single Low Pressure, POP003 Dual Low Pressure, POP003 Single High Pressure, DVS 2207-1-2007, WIS 4-32-08 Single Pressure Welding, WIS 4-32-08 Dual Pressure Welding and WIS 4-32-08 UKWIR Fastweld Easily able to weld between clamps 3 and 4 for tight fittings and fabrications Entire welding frame with 4 clamps and all hydraulics is easily removed for trench work, allowing accurate alignment Fork lift and overhead lifting points CE approved by SGS www.sgs.com
