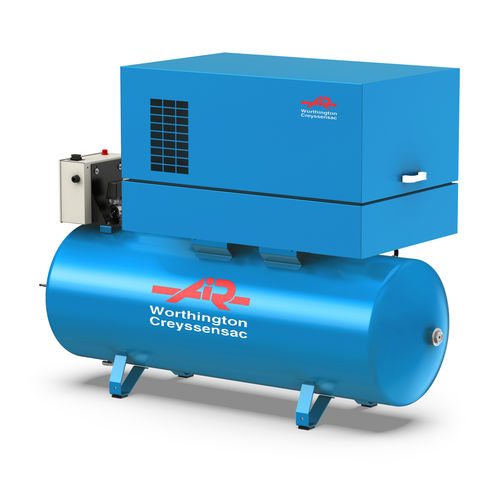

Industrial compressor BH/BK/BL
pistonairelectrically-powered

industrial compressor
industrial compressor
industrial compressor
industrial compressor
industrial compressor
industrial compressor
industrial compressor
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-free, oil-lubricated
Application domain
industrial
Applications
for packaging, flexible
Voltage
400 V, 230 V
Other characteristics
compact, tank-mounted, high-pressure, direct-drive, high-performance, modular
Tank volume

Min.: 0 l
(0 gal)

Max.: 500 l
(132.1 gal)

Pressure

10 bar, 15 bar, 20 bar, 30 bar
(145.04 psi, 217.56 psi, 290.08 psi, 435.11 psi)

Flow

Min.: 11.2 m³/h
(395.52 ft³/h)

Max.: 64.8 m³/h
(2,288.39 ft³/h)

Power

Min.: 1.5 kW
(2.04 hp)

Max.: 15 kW
(20.39 hp)

Noise level

Min.: 63 dB

Max.: 86 dB

Description

Worthington Creyssensac’s range combines top-quality design and performance with maximum operational flexibility. Giving you the very best in compressed air reliability and low cost of ownership, a BH, BK or BL is your wisest choice and a smart investment! AVAILABLE MODELS : Chassis | Tank | Oil-free | Sound insulation box ADVANTAGES : High reliability | Low maintenance costs | Impressive performance | A flexible choice FOR WHOM ? Industrial production | Automotive industry | Aeronautics industry | Military industry | Water & waste treatment | Packaging & wrapping | Engineering Know more about our Blocair industrial pistons Superior Quality & Top Performance The BH, BK and BL models offer ease of use and efficiency, but they also adapt to your changing compressed air requirements! Here are some benefits: - They offer you a premium reliabiliy : they are built to perform in extreme conditions and under high working pressures, they are designed with high-quality materlials and offer you low maintenance costs. Reducing costs has been an important factor in the design of our Blocair range, which is why the main components contribute to reducing operating costs. - An impressive performance : they can be used continuously without interruption or reduction in component life. On top of that, they are equipped with start/stop technology that eliminates waste during the vacuum cycle! - Energy savings : thanks to its components, our range delivers big energy savings compared to simple standard compressors.
